Air Pre Filter
Created with Pixso.

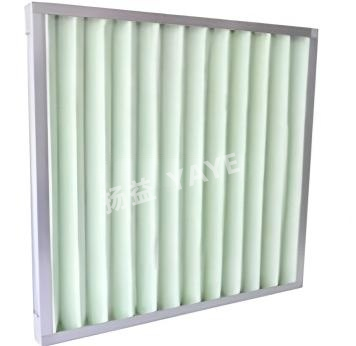

Synthetic Fiber Material G4 Pleated Panel Filter 595x595x46mm Aluminum Frame

Synthetic Fiber Material G4 Pleated Panel Filter 595x595x46mm Aluminum Frame

Brand Name: YAYE
MOQ: Negotiable
Price: RMB 30-150/piece
Payment Terms: T/T, Western Union, L/C
Supply Ability: 2000 pcs per month
Detail Information
Place of Origin:
China Guangdong
Certification:
CE FCC
Construction:
Panel Filter
Efficiency:
G1-G4
Filtering Material:
Polyester Fiber Filter Cotton
Wire Mesh:
Double-sided Aluminum Protective Mesh
Size:
Customizable
Initial Resisitance:
<45pa
Usage:
Industrial
Frame Material:
Galvanized Steel/Aluminium
Packaging Details:
Carton Packing
Supply Ability:
2000 pcs per month
Highlight:

G4 pleated panel air filter

,

synthetic fiber pre filter

,

595x595x46mm aluminum frame filter

Product Description
Synthetic Fiber Material G4 Pleated Panel Filter 595x595x46mm Aluminum Frame
Product Description

1. Filter material folding process: Fold the flat filter material into a "wavy" or "accordion" shape. By increasing the unfolded area of the filter material (up to 3 to 5 times that of the flat type), the filtration efficiency and dust holding capacity can be enhanced within a limited space.

2. This pre-filter is constructed with a durable polyester filter cotton, providing excellent filtration capability to keep your air conditioning system running smoothly. Filter cotton material is known for its efficient capture of even the smallest particles, ensuring your indoor air remains clean.

3. Dust holding capacity: Due to the large area of the folded filter material, the dust holding capacity can reach 500-800g/㎡ (higher than the 200-300g/㎡ of the plate-type primary efficiency), and the replacement cycle is usually 1-6 months, depending on the air quality.

Features
  • Frame - Aluminium alloy
  • The optional frame thickness ranges from 21 to 46mm
  • Filter material - High-quality polyester synthetic fiber
  • Reinforcement - Hot-dip galvanized square steel wire mesh
  • Connection corner - Sturdy, ABS plastic corner/aluminum alloy corner
Technical Parameters
Synthetic Fiber Material G4 Pleated Panel Filter 595x595x46mm Aluminum Frame 0 Synthetic Fiber Material G4 Pleated Panel Filter 595x595x46mm Aluminum Frame 1 Synthetic Fiber Material G4 Pleated Panel Filter 595x595x46mm Aluminum Frame 2 Synthetic Fiber Material G4 Pleated Panel Filter 595x595x46mm Aluminum Frame 3
Applications

The Air Pre Filter is a versatile product that can be used in various industries and scenarios due to its efficient air filtration capabilities:

  • Manufacturing Plant: Ideal for maintaining product quality and safe working environments by capturing dust and contaminants.
  • HVAC Systems: Improves indoor air quality and protects systems from dust and debris with durable panel filter construction.
  • Home Use: Enhances air quality by reducing allergens and airborne particles in residential air conditioning units.
  • Other Industries: Suitable for any application requiring clean, filtered air with CE and FCC certified performance.
Customization
Parameter Details
Place of Origin China Guangdong
Certification CE FCC
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Carton
Delivery Time 15 days
Payment Terms T/T, Western Union, L/C
Efficiency Grade G1 G2 G3 G4
Function Move Smell/dust
Construction Panel Filter
Maximum Air Flow 1200 CFM
Filtering Material Polyester fiber filter cotton
Support and Services
  • Installation assistance and guidance
  • Troubleshooting common issues
  • Maintenance tips and recommendations
  • Replacement part ordering
  • Product upgrades and enhancements
Packing and Shipping

Product Name: Air Pre Filter

Description: High-quality air pre filter for effective filtration

Package Contents: 1 Air Pre Filter

Shipping Details: This product will be carefully packaged to ensure safe delivery to your doorstep. Shipping fees may apply.

FAQ
Q: Where is the Air Pre Filter product manufactured?
A: The Air Pre Filter product is manufactured in China Guangdong.
Q: What certifications does the Air Pre Filter product have?
A: The Air Pre Filter product is certified with CE and FCC.
Q: What is the minimum order quantity for the Air Pre Filter product?
A: The minimum order quantity for the Air Pre Filter product is negotiable.
Q: How is the price of the Air Pre Filter product determined?
A: The price of the Air Pre Filter product is negotiable.
Q: What are the packaging details for the Air Pre Filter product?
A: The Air Pre Filter product is packaged in wooden cases.
Q: What is the delivery time for the Air Pre Filter product?
A: The delivery time for the Air Pre Filter product is 15 days.
Q: What payment terms are accepted for the Air Pre Filter product?
A: Payment terms accepted for the Air Pre Filter product include T/T, Western Union, and L/C.
