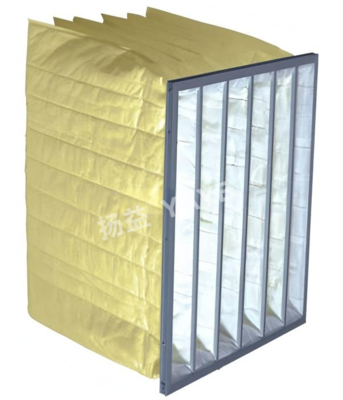

Pocket-type filter bag F8 with aluminum frame, with large ventilation capacity of non-woven fabric bag

F6 Portable Filter Bag, suitable for industrial filtration, featuring medium resistance and low resistance properties, made of non-woven fabric.

It uses non-woven fabric made of synthetic fibers, featuring a fluffy and gradually denser fiber structure, which can effectively capture dust. The depth of the bag is generally 381mm, 500mm, 534mm, etc.

The frame and support frame can be reused. When replacing the filter, only the filter bag needs to be replaced, which is convenient and fast, significantly reducing operating costs.

According to the EN 779 standard, the filter efficiency of medium-efficiency bag filters is divided into five grades: F5 - F9. The filter efficiency of F5 for 1.0μm particles is 45%, F6 is 65%, F7 is 85%, F8 is 90%, and F9 is 95% (colorimetric method).

• Synthetic pocket filter
• Air Pocket Filter
• F5 Pocket Bag Filter
• Product Name: Pocket Bag Filter
• Package: Carton
• Resistance: Low
• Maximum Airflow: 1200 CFM
• Application: HVAC Systems
• Filtration: 0.5um

• Electronics and Semiconductor Industry: Air conditioning systems for chip, circuit board, and electronic component production workshops. In this scenario, fine dust (such as metal shavings and resin particles) needs to be controlled to prevent them from adhering to the surface of electronic components, causing short circuits or performance failures.
• Mechanical Processing and Automotive Manufacturing: Applicable to machine tool workshops and "pre-treatment workshops" before automotive painting. For example, before automotive body painting, fine dust in the air needs to be removed to prevent particle and defect issues in the coating; metal shavings (fine powder) in mechanical processing that enter the hydraulic system or motor may cause equipment wear. Medium-efficiency filters can effectively intercept such impurities.
• Chemical and Pharmaceutical Industry (Non-Aseptic Sections): Used in chemical raw material storage rooms, "raw material pre-treatment area" and "packaging area" of pharmaceutical factories. For instance, if chemical raw material dust spreads into the air, it may cause respiratory discomfort for personnel or affect the purity of the raw materials; medium-efficiency filters can control such dust and relieve the pressure for more stringent aseptic filtration (such as high-efficiency filters) at the later stage.

Product Customization Services for the Pocket Bag Filter:

• Place of Origin: China Guangdong
• Certification: CE FCC
• Minimum Order Quantity: Negotiable
• Price: Negotiable
• Packaging Details: Carton box
• Delivery Time: 15 days
• Payment Terms: T/T, Western Union, L/C
• Frame: Galvanized Steel/aluminium
• Package: Carton
• Maximum Humidity: ≤80%HR
• Shape: Rectangular
• Application: HVAC Systems

Keywords: fiberglass pocket filter supplier, fiberglass pocket filter, HVAC Pocket Air Filter

The Pocket Bag Filter product comes with comprehensive Product Technical Support and Services, ensuring that customers receive assistance with installation, troubleshooting, and maintenance. Our dedicated team of experts is available to address any queries or concerns related to the product, providing guidance and support throughout its lifecycle.

Product Name: Pocket Bag Filter

Description: High-efficiency pocket bag filter for home and industrial use.

Features: Removes dust, pollen, and other airborne particles. Durable construction for long-lasting use.

Package Includes: Pocket Bag Filter x 1
